Panoramic Wifi Camera
Panorama Fisheye 360 degree View 960P IP Camera

Key Feature:





960P,1.3 MP,Fisheye, Wiless





1: Panorama: H.264,1.3 Mp, supports 360° panorama wide angle view.
2: P2P, PnP: Plug and Play.
3: App: Supports iOS, Android smart phones or tablet PCs.
4: MicroSD Card: Supports up to 128GB microSD card for recording and playback.
5: Alarm: Supports Motion detection alarm
6.Smart wifi connection

7.3pcs 1W White LED (can turn on/off light remotely)& 3pcs 1W Infrared  LED

     (IR 5m,can record even it is dark)

Specification
Download
Model:  HYF-ZYSIPC17
System solutions
  GM8135S +SC1135
Photoelectric parameters
Lens 1/3" fisheye lens, f=1.44mm, F=2.0
Field of view Level 185°/vertical 185°
Aperture fixed
Imaging device 1/2.8"line-by-line scan CMOS
Sensitivity 0.2Lux at F2.0(colors)/0.02Lux at F2.0(Black and white)
Day and night switching Infrared dual filter switch
Maximum resolution 1280*9601.3MP
Video encoding H.264 Dual stream
Frame rate 25 Frame / sec
Audio
Audio code AAC/G.711Support two-way voice intercom
The internet
The internet 2.4GHz2.4835GHz
WIFI IEEE802.11b/g/n
User interface
Power supply interface E27EU/E26US
powered by AC100240V5060Hz
Local storage 1 pcs TFMicroSDStorage interfaceMaximum support 128G
Indicator light 1 pcs Two-colors LED
Speaker 8Ω 1W
Reset A key for reset
Lighting 3pcs 1W White LED  for illumination(can turn on/off light remotely)&
3pcs 1W Infrared  LED for night visionIR 5m,can record even it is dark
General parameters
Power consumption <6W
Working condition -10℃~+50℃@humidity 10%~ 95% No condensation
Storage conditions -40℃~+75℃@humidity 10%~ 95% No condensation

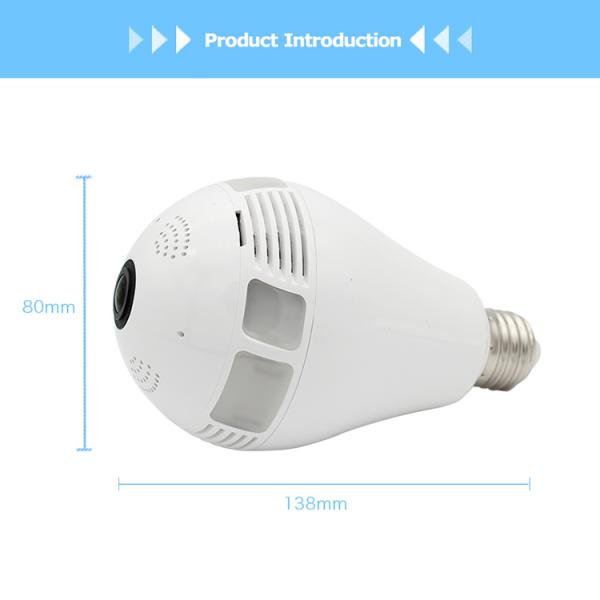

Size Diameter 80mmHeight 137.8mm
Weight 150g
Color White
Package
Standard (Box Size :16.8*10.7*9.6cm)  1* Bulb Panoramic IP Camera
1* User Manual
1* Reset Pin
1* Box
Gross Weight:  450g
