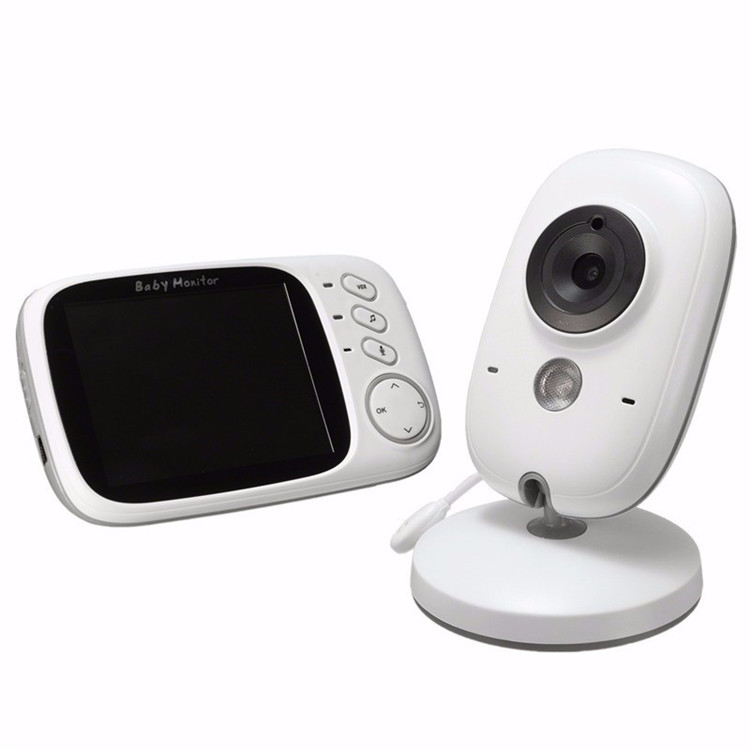

Model :HYF-VB603

Gernal:
1.Transmission Frequency: ISM 2400~2483.5 MHz
2.Transmission Power: 17dBm
3.Unobstructed Effective Range: 160ft/50m indoor , 850ft/260m outdoor line of sight
4.Spread Spectrum: AFH & TDMA
5.Modulation Mode: GFSK
6.Operating Temperature:  14 ~ 122° Fahrenheit / -10 ~ +45° Celsius
7.Operating Humidity:  <85%

Monitor
1.LCD Size:  3.2 Inch
2.Resolution Supported:  320 x 240 pixel
3.Receiving Sensitivity:  -90dBm
4.Consumption Current:  200mA
5.Battery:  Li-polymer / 750mAh
6.Power Supply:  5V/550mA DC
7.Dimensions (W x H x D):  120mm x 70mm x 17mm

Camera

1.Image Sensor:  CMOS
2.Total Picture Pixels:  640 x 480
3.Minimum Illumination:  0 Lux (IR on)
4.Night Vision Distance:  15 FT (5m)
5.View Angle:  Diagonal 45°
6.Power Consumption:  200mA
7.Power Supply:  5V/550mA DC
8.Dimensions (W x H x D):  67mm x 106mm x 67mm
