Product name: |

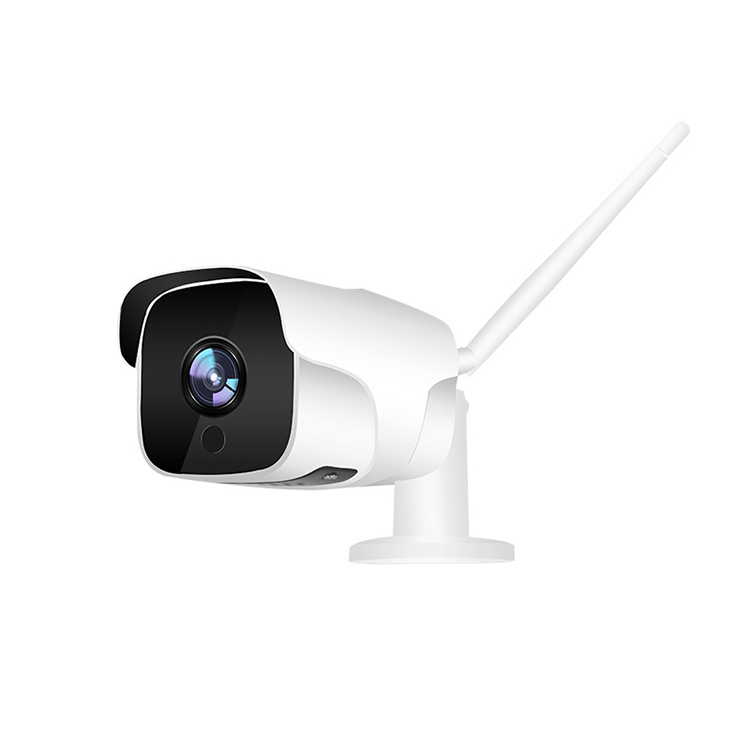

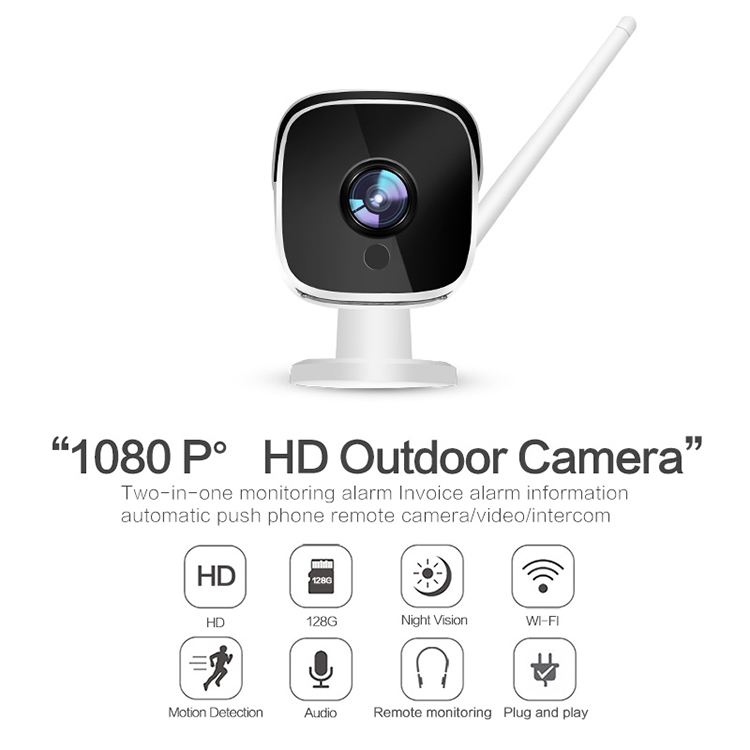

Internet network HD video camera |
|
Product model： |
HYF-L6 |
|
Technical parameter |
|
Processor： |
GM8135+SC2135 |
|
Platform： |
S.360eye.cc |
|
Image sensor： |
1/3 Progressive Scan CMOS |
|
Built in lens： |
3.6mm |
|
Manual video format： |
MP4(1920*1080P,storage in mobile) |
|
Video compression standard： |
H.264(Storge in TF card ) |
|
Audio compression standard： |
G.711(Storge in TF card ) |
|
Video frame rate： |
Maximum 25 fps |
|
Video playback mode： |
Mobile APP |
|
Audio input and output： |
Input： built in microphone; output： built-in speaker |
|
IR night vision： |
18pcs ir lights,power consumption 2W；Through the image contrast control IR-CUT switch, IR night vision distance 10 meters(Control light board switch through photoresistance) |
|
Focusing method： |
Manual |
|
Local storage： |
TF card, maximum support 128G |
|
Support multiple protocols： |
TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP |
|
WiFi protocol： |
IEEE 802.11b/g/n |
|
Video control： |
Support |
|
Motion detection： |
Support |
|
Alarm action： |
Mobile APP push screenshot |
|
User settings： |
Max share to 5 users |
|
System interface： |
1 TF interface、1 reset button |
|
Supply voltage： |
12V1A |
|
Power consumption： |
<10W |
|
Working temperature： |
0℃ -60℃ |
|
Applicaton： |
Indoor |
|

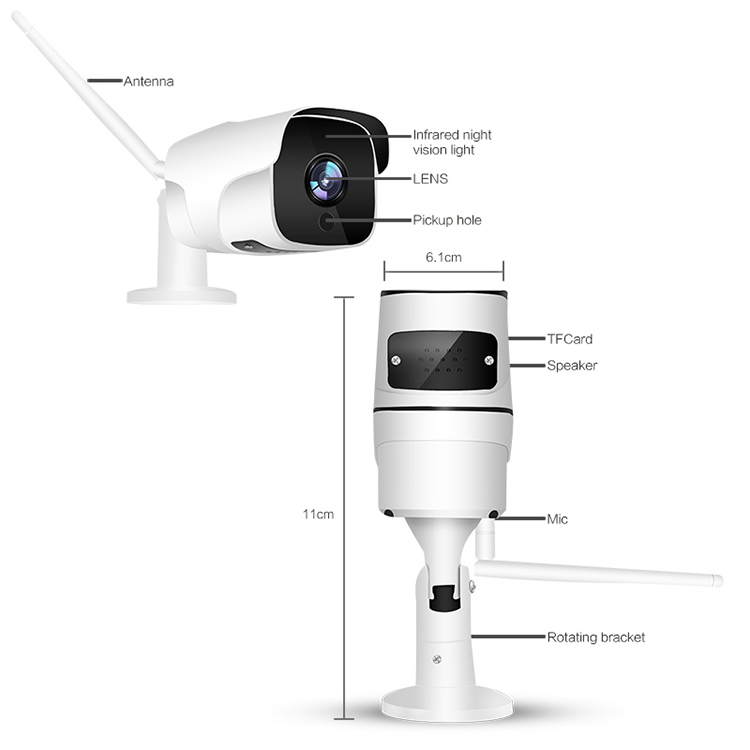

Product size: |
6.1*6.2*11cm |
|
Packing size: |
9.2*9.2*26cm |
|
Net weight： |
336g |
|
Gross weight/pc： |
549g |
